Product Description

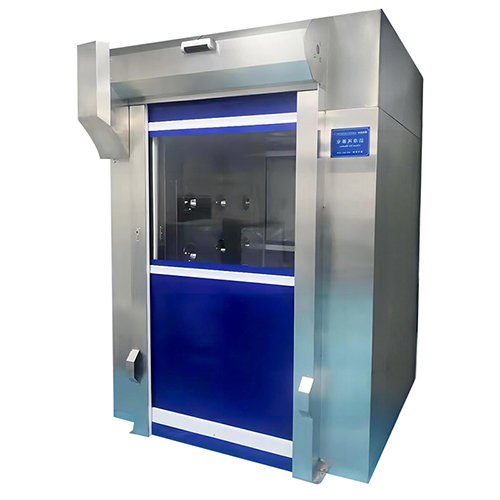

Technical Parameters of the Air Shower Room with a Fast Door:
1.The box body and internal materials of the air shower room are made of food-grade 304 stainless steel plates. The bottom plate is made of 2.0mm-thick 304 stainless steel plates and square tubes, and the welding is firm.
2.The air shower room is reasonably designed and complies with the manufacturing standards of clean rooms. The primary effect and high-efficiency filters have a long service life and high filtration efficiency, which can effectively filter the dust particles and dandruff in the air. The high-efficiency filter uses ultra-fine glass fiber filter paper as the filter material; the filtration efficiency is ≥99.999%. The dust-catching particle size is ≥0.3um. Under normal use, it needs to be replaced once every two years, and the replacement is simple and convenient. The primary effect filter can be disassembled and cleaned once a year and can be reused.
3.The air shower room is equipped with a low-noise and high-static-pressure centrifugal fan. The power is 750W, the air volume of the fan is 2000m³/h, the total pressure is 1500Pa, the voltage is 380V, and the rotational speed is 2800r/min.

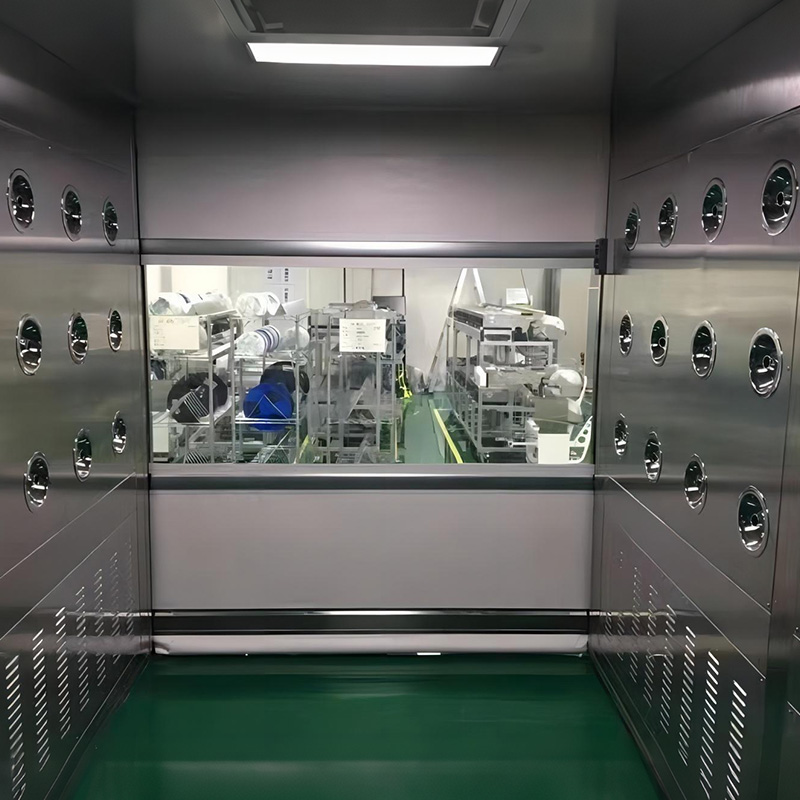

4.The air shower room is equipped with 360-degree adjustable mirror-finish stainless steel nozzles (the material thickness is 1.0mm, and the diameter of the air nozzle is ∮30mm). The outlet air speed is ≥22-25m/s, and the air shower time can be automatically adjusted. It is recommended that the air shower time is ≥10s.
5.The air shower room adopts an advanced high-tech integrated circuit control system. It has infrared induction for automatic air shower, and each section is equipped with an infrared sensor; it stops automatically during the air shower process, and a Schneider intermediate relay is used.
6.The lighting lamp is an embedded energy-saving lamp with a frosted glass cover. The lighting lamp works when the front door of the air shower room is opened and stops working after the back door is closed.
7.The air shower room adopts a three-phase five-wire system (three neutral wires, one live wire, and one ground wire) for protective grounding, so there will be no potential safety hazards.

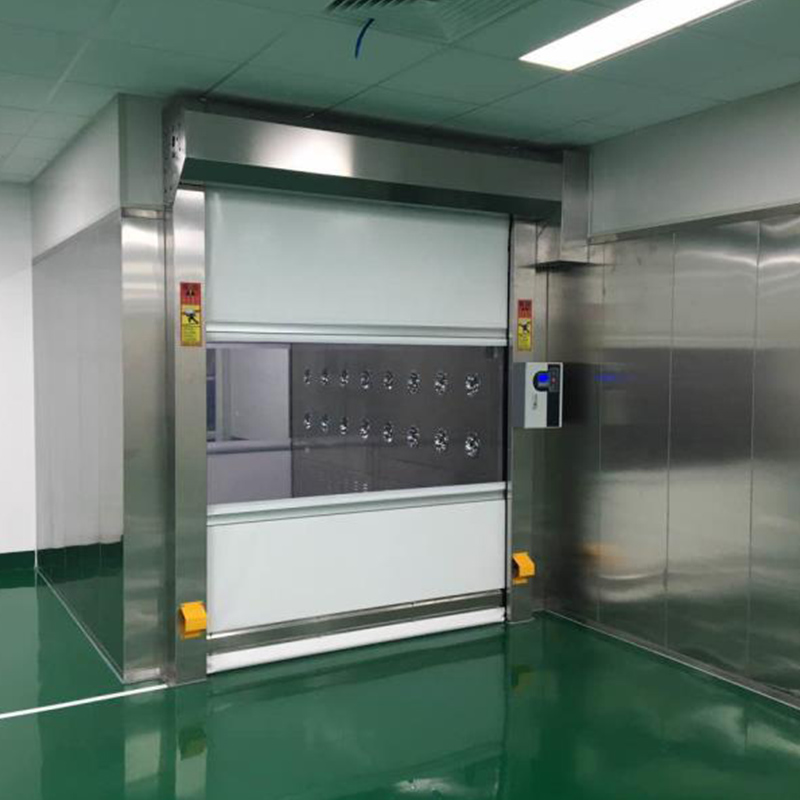

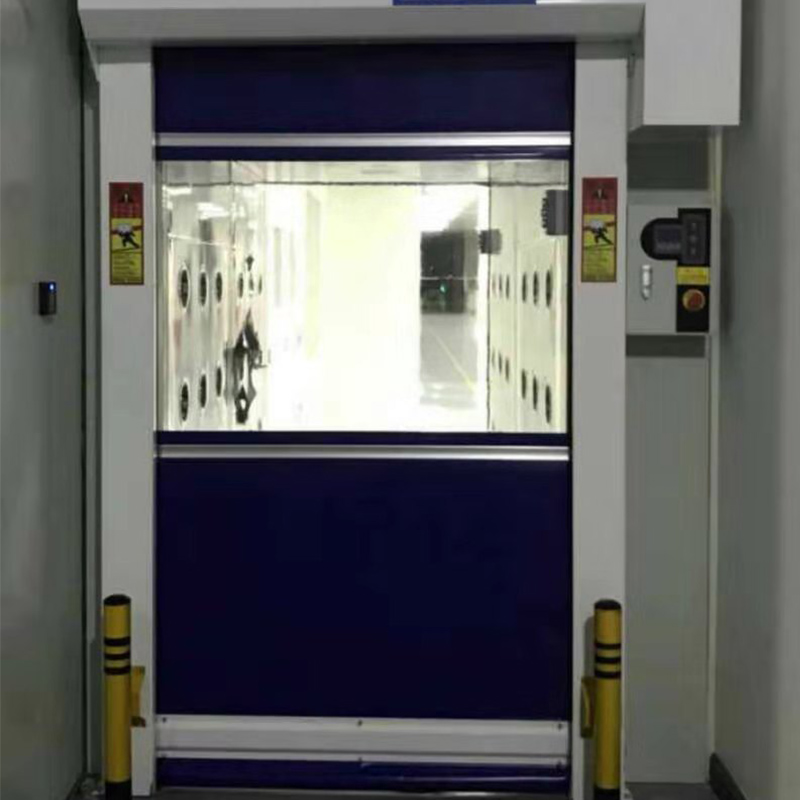

8.The motor of the fast rolling shutter door is imported from Germany (SEW) or a joint venture brand between China and Italy (SEJ). Each entrance and exit is equipped with a fast 感应 rolling shutter door. The frame of the rolling shutter door is made of food-grade 304 stainless steel plates. The door curtain is made of high-density polyester fiber with a surface coating treatment, with a thickness of 0.8mm. The color of the base fabric can be selected by oneself. A transparent soft board is reserved in the middle of the base fabric. The entrance is equipped with radar induction (or a manual button for opening the door), and each door closes automatically during the air shower process.
9.The opening speed of the fast door is 0.8-1.5m per second when opening and 0.6-1.2m per second when closing (the speed is adjustable by frequency conversion). The wind resistance capacity is 9m/s (50pa standard 3*3). The aluminum alloy wind-resistant ribs are connected in sections, making it convenient to replace.
